Overview

If you get this message box: This means your pc has lost connection to your server

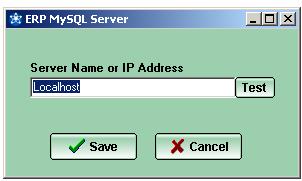

You will then get this box - Click New and enter the name of your server
Click on Test which will give you a message confirming connection OK
Click Save




If the error keeps persisting the problem could be the server is going into sleep mode
- to fix this issue follow the steps below:


Go to Start => Control Panel

Select System



Then select Hardware tab - then OK


Then Select Device Manager then OK

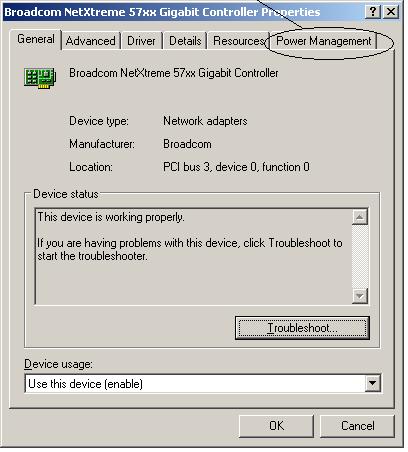

Expand the Network Adapters and double click on your controller or right mouse click then properties




Select Power Management- Then OK




Now untick Allow the computer to turn off this device to save power then select ok
- this will now reset the computer network




Now also check the Fire wall connection - Go back to the Control Panel and select Windows
Firewall.

If the fire wall is turned off no action is required but we suggest you create the exceptions anyway.




If Firewall is turned on then you will need to allow some exceptions - these exceptions are for
MySQL and ERP.



If the ports are not already there then you will need to create them by selecting Add Port.
Create Port Number 3309 for ERP
and Port Number 3310 for MySQL as follows



Next if required

Right mouse click in the middle of your screen and select properties - then select Screen Saver




Then go into Power management


Ensure that the Hardrives do not turn off, but ensure you have a screen saver active.



Lastly go into Start =>Control Panel and if you have any Virus scans running ensure the firewall settings
have also been given exceptions to Port 3309 and 3310

Now go to your ERP icon and open up the programe if the following message box appears select Reconnect



Ensuring that all the databases are on the same Version. If any are in brackets the user version does not
match the server and will require updating.



How to test all is working go to Start=>explore=>Programe Files=> ERP Software=>Connection.ini


All server names should be the same


If they are not then the error message will appear again so you need to ensure you have the
Correct computer/server name




Go to Start =>my computer double click or Right mouse click to select System PropertiesLost21.JPG


Full computer/server name is what is important




Once you have this you can go Start=> Run. Type in cmd (command) and click OK



Now enter ping space name of the server
Then you should see the the reply which will show that the network is working


If you get this message, due to the name not being correct, this means the network is not working

Now recheck the connection ini file
Start =>c;drive=>programe files=>ERP=> connection ini



To ensure this name is correct - on the server go to Start=>c:drive=>mysql=>data
highlight the name eg sample_company, right mouse click and select rename, then
Control C (to copy)




Go back to the connection ini and highlight the Database name and select Control V
(Paste) to ensure the correct name has been selected




You will now be able to connect to ERP
